Day 16 — TCP congestion control: CUBIC, BBR, the framework

Today’s mission: understand how a TCP connection decides “how much to send,” learn the cwnd-dynamics machinery (slow start, AIMD, the sawtooth, ECN, pacing) that every algorithm is a variation on, see the in-tree algorithms compete on the same workload, and grasp the kernel’s pluggable framework that lets you swap them at runtime. Total time: ~110 minutes.

Why congestion control exists

A TCP sender has two limits on how much data it can have in flight at once:

1. The receive window (snd_wnd on the sender side) — how much the receiver says it can buffer, as recorded on the sender. Communicated in every TCP header. Easy. (The mirror field rcv_wnd is what this socket advertises to its peer for the reverse direction.)
2. The congestion window (snd_cwnd) — how much the network between us and the receiver can absorb without dropping packets. Not communicated; the sender estimates from observed loss and RTT.

The congestion-control algorithm is what computes snd_cwnd. Send too little and you waste bandwidth. Send too much and you cause loss, which forces retransmits, wastes more bandwidth, and starves other flows. CC is the tradeoff.

(All three fields are real: the peer-receiver’s advertised window lives in snd_wnd — “the window we expect to receive” — at include/linux/tcp.h:223; this host’s own advertised window is rcv_wnd at :318; and snd_cwnd at :225. The kernel gates new sends by snd_wnd: tcp_wnd_end() = snd_una + snd_wnd at include/net/tcp.h:1569.)

Back on Day 3 we deliberately deferred the mechanics of how snd_cwnd grows and collapses. Today we pay that debt. Before we can read the pluggable framework — the vtable of callbacks every algorithm fills in — we need the model those callbacks operate on. So the chapter front-loads five pieces of background, intuition first, then the concrete v7.1 struct or function:

1. How cwnd actually evolves: slow start, congestion avoidance, AIMD, the sawtooth.
2. The congestion-control state machine (ca_state) — not the connection state machine from Day 15.
3. ECN — how the network signals congestion without dropping a packet.
4. RTT estimation: the smoothed RTT (srtt) and its variance that ss prints.
5. Pacing and bufferbloat — the two ideas BBR is built on.

Only then do we open struct tcp_congestion_ops, and every field will already make sense.

Background 1: how cwnd actually evolves — slow start, AIMD, the sawtooth

Here is the whole game in one picture. A connection has no idea how fast the path is, so it probes: start small, speed up until something breaks, back off, repeat. The “something breaks” signal for classic TCP is packet loss. Everything else — the exact ramp shape, what counts as “breaks,” how far to back off — is a variation on this loop.

cwnd is measured in packets, not bytes

One thing to get straight first: on Linux snd_cwnd is counted in segments (packets), not bytes. A fresh connection starts at TCP_INIT_CWND = 10 (include/net/tcp.h:269) — ten segments may be outstanding before the first ACK comes back. We made this point on Day 3; here we just lean on it: when we say “cwnd doubles,” we mean the packet count doubles.

Phase 1: slow start (which is exponential, despite the name)

A new connection enters slow start. The rule is simple: for every segment an ACK acknowledges, bump cwnd by one. Acknowledge ten segments, cwnd goes from 10 to 20; next round-trip it’s 40, then 80… So “slow” is historical — the growth is actually exponential, doubling every RTT. The point of slow start is to find the path’s capacity quickly without firing a huge burst on the very first RTT.

The kernel’s helper is tcp_slow_start (net/ipv4/tcp_cong.c:456):

__bpf_kfunc u32 tcp_slow_start(struct tcp_sock *tp, u32 acked)
{
    u32 cwnd = min(tcp_snd_cwnd(tp) + acked, tp->snd_ssthresh);

    acked -= cwnd - tcp_snd_cwnd(tp);          /* leftover ACKs */
    tcp_snd_cwnd_set(tp, min(cwnd, tp->snd_cwnd_clamp));
    return acked;                              /* spill into congestion avoidance */
}

It adds acked straight onto cwnd — but only up to snd_ssthresh, the slow-start threshold (include/linux/tcp.h:248). That ceiling is the boundary between the two phases.

Phase 2: congestion avoidance (which is linear)

Once cwnd reaches snd_ssthresh, the connection switches to congestion avoidance, where growth becomes linear: roughly +1 segment per RTT. The test that picks the phase is exactly one comparison, tcp_in_slow_start (include/net/tcp.h:1520):

static inline bool tcp_in_slow_start(const struct tcp_sock *tp)
{
    return tcp_snd_cwnd(tp) < tp->snd_ssthresh;
}

Below the threshold → slow start (exponential). At or above it → congestion avoidance (linear).

Linear “+1 per RTT” is trickier than it sounds, because the kernel processes one ACK at a time, not one RTT at a time. The generic helper tcp_cong_avoid_ai (“ai” = additive increase, net/ipv4/tcp_cong.c:470) implements it with a fractional accumulator, snd_cwnd_cnt (“Linear increase counter,” include/linux/tcp.h:425):

__bpf_kfunc void tcp_cong_avoid_ai(struct tcp_sock *tp, u32 w, u32 acked)
{
    ...
    tp->snd_cwnd_cnt += acked;
    if (tp->snd_cwnd_cnt >= w) {
        u32 delta = tp->snd_cwnd_cnt / w;
        tp->snd_cwnd_cnt -= delta * w;
        tcp_snd_cwnd_set(tp, tcp_snd_cwnd(tp) + delta);
    }
    ...
}

It takes w ACKs to bump cwnd by one. Pass w = cwnd and you get the classic “+1 per RTT”: it takes a full window of ACKs to add one segment.

AIMD: Additive Increase / Multiplicative Decrease

Put the two responses together and you have AIMD, the rule at the heart of classic TCP:

• Increase (additive): +1 segment per RTT in congestion avoidance — the slow, careful climb above.

• Decrease (multiplicative): on loss, halve. Reno’s ssthresh callback computes the new threshold as tcp_reno_ssthresh (net/ipv4/tcp_cong.c:515):

  __bpf_kfunc u32 tcp_reno_ssthresh(struct sock *sk)
  {
      const struct tcp_sock *tp = tcp_sk(sk);
      return max(tcp_snd_cwnd(tp) >> 1U, 2U);     /* cwnd/2, floor 2 */
  }


  cwnd >> 1 is cwnd / 2 — a multiplicative cut, with a floor of 2 so the connection never stalls completely.

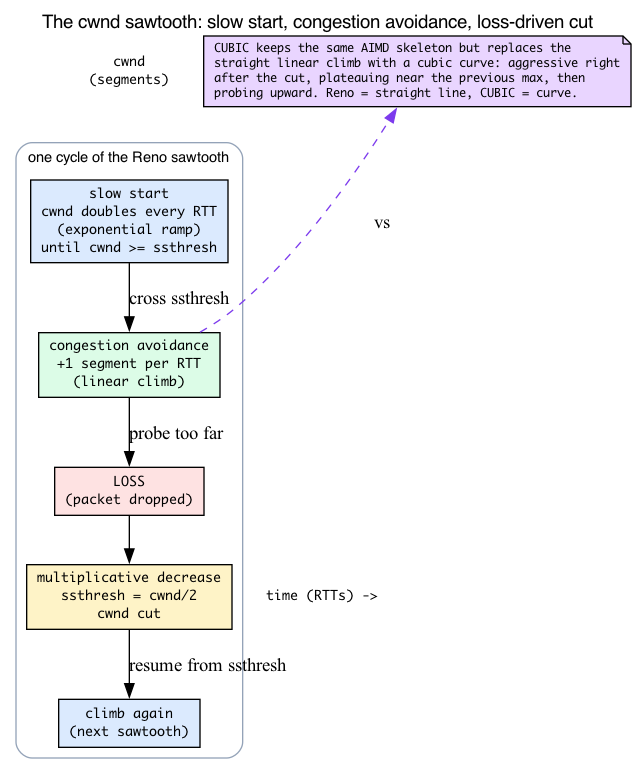

This is the famous TCP sawtooth: climb linearly, halve on loss, climb again, halve again. You can see both halves wired together in the Reno reference, tcp_reno_cong_avoid (net/ipv4/tcp_cong.c:496) — slow-start if below threshold, else additive increase:

__bpf_kfunc void tcp_reno_cong_avoid(struct sock *sk, u32 ack, u32 acked)
{
    struct tcp_sock *tp = tcp_sk(sk);
    if (!tcp_is_cwnd_limited(sk))
        return;
    if (tcp_in_slow_start(tp)) {                 /* exponential phase */
        acked = tcp_slow_start(tp, acked);
        if (!acked)
            return;
    }
    tcp_cong_avoid_ai(tp, tcp_snd_cwnd(tp), acked);  /* linear phase */
}

This is what “everything else is a variant” actually means. CUBIC keeps the AIMD skeleton but replaces the linear climb with a cubic curve (aggressive right after a loss, plateauing near the previous maximum, then probing upward). BBR throws out the loss-driven loop entirely and replaces it with a bandwidth model. But Reno is the shape to hold in your head.

And now the two most important callbacks in today’s vtable already have meaning:

• cong_avoid runs the increase side — it decides slow-start-vs-avoidance and grows cwnd.
• ssthresh runs the decrease side — it computes the new threshold after a loss.

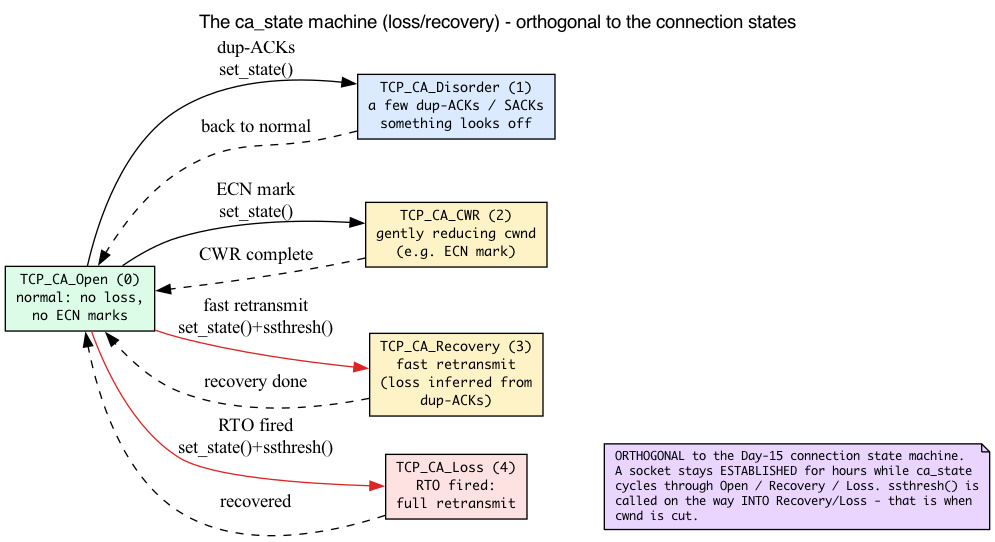

Background 2: the congestion-control state machine (ca_state)

The vtable also has set_state(sk, new_state) and the runtime path says “on loss the kernel calls set_state(sk, CA_Loss).” That CA_Loss belongs to a state machine you have not met.

It is not the Day-15 connection state machine. A socket can sit in ESTABLISHED for hours; ca_state is a separate, orthogonal tracker for where the connection is in the loss/recovery cycle. The five values (enum tcp_ca_state, include/uapi/linux/tcp.h:194):

• TCP_CA_Open (0) — normal. No reordering, no loss, no ECN marks recently.
• TCP_CA_Disorder (1) — a few duplicate ACKs / SACKs. Something looks off, but not yet a confirmed loss.
• TCP_CA_CWR (2) — Congestion Window Reduced. The sender is gently reducing cwnd, e.g. in response to an ECN mark (Background 3).
• TCP_CA_Recovery (3) — fast retransmit / fast recovery in progress (a loss was inferred from dup-ACKs, not a timeout).
• TCP_CA_Loss (4) — a retransmit timeout (RTO) fired. The worst case: full retransmit.

The kernel calls set_state(sk, new_state) to tell the algorithm it has moved between these. Why does an algorithm care? Because entering Recovery/Loss is exactly when ssthresh() is called and cwnd is cut, and leaving it is when the algorithm may resume growth. This is the hook by which CUBIC remembers its pre-loss maximum (so it can plateau there) and BBR knows not to overreact to a single loss.

ca_event: a finer-grained notification stream

Alongside whole state changes, the kernel emits ca_event notifications (enum tcp_ca_event, include/net/tcp.h:1242) through the cwnd_event callback:

enum tcp_ca_event {
    CA_EVENT_TX_START,      /* first transmit when no packets in flight */
    CA_EVENT_CWND_RESTART,  /* congestion window restart */
    CA_EVENT_COMPLETE_CWR,  /* end of congestion recovery */
    CA_EVENT_LOSS,          /* loss timeout */
    CA_EVENT_ECN_NO_CE,     /* ECT set, but not CE marked */
    CA_EVENT_ECN_IS_CE,     /* received CE marked IP packet */
};

The last two — CA_EVENT_ECN_NO_CE / CA_EVENT_ECN_IS_CE — are the ECN events DCTCP lives on. Hold that thought; Background 3 explains the marks, and the DCTCP capsule later ties it together.

The deep dive — RTO timers, fast retransmit, RACK, the recovery machinery — is tomorrow (Day 17). Today you just need the vocabulary so the callbacks aren’t opaque.

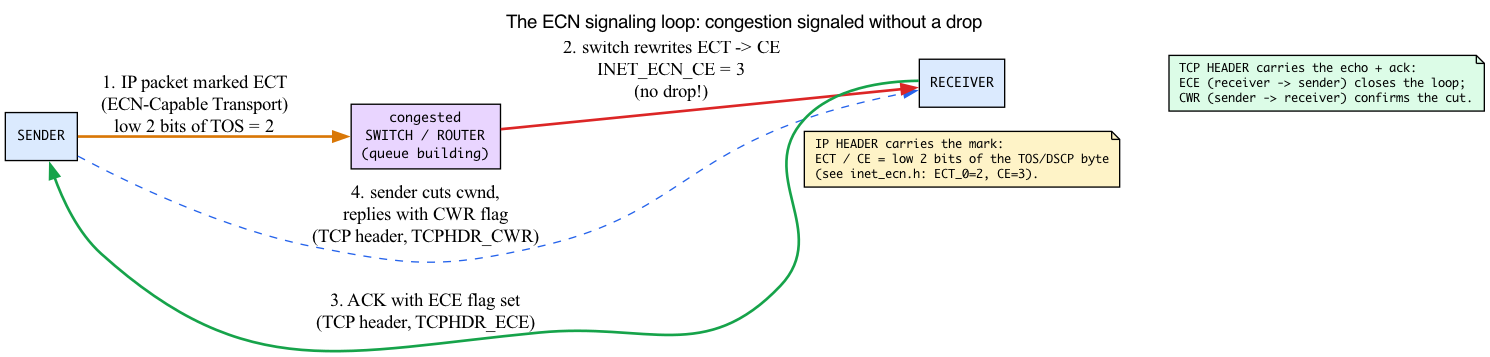

Background 3: ECN — Explicit Congestion Notification

The DCTCP algorithm reacts to congestion before any packet is dropped. That sounds impossible — how does a sender learn the network is congested if nothing was lost? The answer is ECN, and it’s the one mechanism in this chapter that crosses both the IP and TCP headers.

On Day 9 you saw that the low 2 bits of the IP TOS/DSCP byte are the ECN bits, deliberately excluded from rule matching. Here’s what they do.

Step 1: the sender marks the IP packet ECT

A sender that supports ECN sets those 2 bits to ECT (ECN-Capable Transport), advertising “I understand congestion marks — mark me instead of dropping me.” The values live in include/net/inet_ecn.h:14:

enum {
    INET_ECN_NOT_ECT = 0,
    INET_ECN_ECT_1   = 1,
    INET_ECN_ECT_0   = 2,
    INET_ECN_CE      = 3,
    INET_ECN_MASK    = 3,
};

Step 2: a congested switch rewrites ECT → CE

When a router or switch’s queue is building, instead of dropping an ECT packet it flips the bits to INET_ECN_CE — Congestion Experienced (= 3). The test is INET_ECN_is_ce() (include/net/inet_ecn.h:23):

static inline int INET_ECN_is_ce(__u8 dsfield)
{
    return (dsfield & INET_ECN_MASK) == INET_ECN_CE;
}

This is the key idea behind “reacts before loss”: congestion is signaled without a drop.

Step 3: the receiver echoes it back with ECE; the sender confirms with CWR

A CE mark is in the IP header travelling toward the receiver — but it’s the sender that needs to slow down. So the receiver echoes it back using a TCP header flag, ECE (ECN-Echo), and the sender acknowledges that it reduced its window with the CWR (Congestion Window Reduced) flag. Those flags (include/net/tcp.h:1056):

#define TCPHDR_ECE  BIT(6)
#define TCPHDR_CWR  BIT(7)

That ECE ↔ CWR handshake is what turns a one-way IP mark into a closed-loop signal the sender can act on.

Step 4: how it reaches the algorithm

There are two distinct paths into the algorithm, and it’s worth keeping them apart:

• ECE on an incoming ACK (the sender side learning it should slow down). When an ACK carries the ECE bit, the kernel sets the CA_ACK_ECE flag (net/ipv4/tcp_input.c:4154; enum tcp_ca_ack_event_flags, include/net/tcp.h:1255) and passes it to the in_ack_event callback. DCTCP’s handler, dctcp_update_alpha (net/ipv4/tcp_dctcp.c:127, wired as .in_ack_event at :257), recomputes alpha each RTT from tp->delivered_ce/tp->delivered — a running estimate of the fraction of packets that got marked — and scales its cwnd cut by that fraction. A little marking → a little cut; heavy marking → a big cut. That proportional response is why DCTCP hooks in_ack_event instead of cong_avoid.
• Receiving a CE-marked IP packet (the data-receive side, deciding whether to echo ECE). tcp_ecn_check_ce() fires CA_EVENT_ECN_IS_CE / CA_EVENT_ECN_NO_CE (net/ipv4/tcp_input.c:362/:380) through the cwnd_event callback, which DCTCP catches in dctcp_cwnd_event (net/ipv4/tcp_dctcp.c:193, wired as .cwnd_event at :258) to update its ce_state. This path is about echoing ECE, not about the alpha estimate.

So the alpha estimate that drives DCTCP’s proportional cut comes from the in_ack_event/delivered_ce path, not from CA_EVENT_ECN_IS_CE.

And it’s why DCTCP is datacenter-only. Classic Reno/CUBIC treat any congestion signal as a full multiplicative cut; DCTCP reacts proportionally. Mix the two on the same path and they share unfairly — which grounds the “must not be used on the public Internet” rule in the DCTCP capsule below.

Background 4: RTT estimation — smoothed RTT and its variance

The pkts_acked callback hands the algorithm “the latest RTT measurement,” and the ss -tin lab tells you to read rtt:<srtt>/<rttvar>. Two numbers — what are they?

RTT (round-trip time) is measured per ACK: the time from when a segment was sent to when it was acknowledged. That raw sample is what pkts_acked delivers, via struct ack_sample (include/net/tcp.h:1283):

struct ack_sample {
    u32 pkts_acked;
    s32 rtt_us;        /* the raw RTT measurement, microseconds */
    u32 in_flight;
};

But the kernel does not act on raw samples — they’re jittery. It keeps an exponentially-weighted moving average, srtt_us (“smoothed round trip time,” include/linux/tcp.h:307), plus rttvar_us, the smoothed deviation (:243; the underlying mean-deviation accumulator is mdev_us at :272). ss prints these as rtt:<srtt>/<rttvar>.

One gotcha when you compare ss output to raw struct values: the comment says srtt_us is “smoothed round trip time << 3 in usecs” — it’s stored left-shifted by 3 (i.e. ×8) for fixed-point precision. ss already divides it back out, so the number it prints is the real millisecond figure; the in-kernel field is 8× larger.

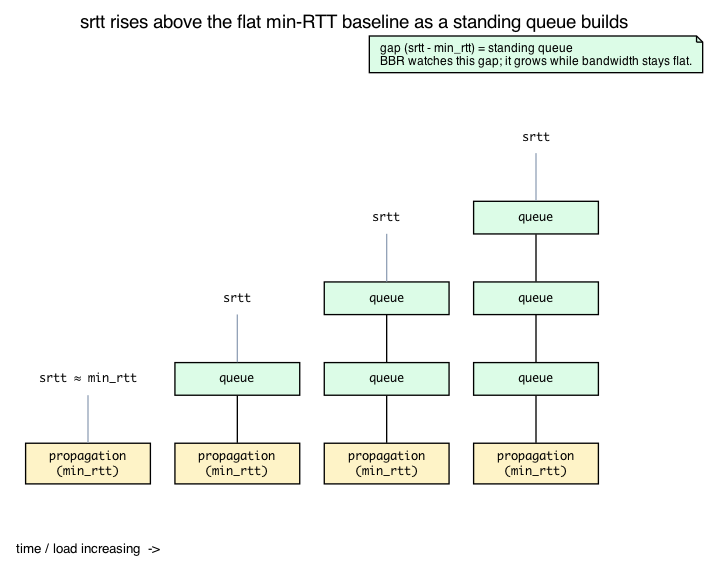

Why CC cares: the minimum RTT is the path’s propagation delay with no queue. BBR maintains its own min_rtt_us (net/ipv4/tcp_bbr.c:91, a plain u32) with a time-windowed minimum in bbr_update_min_rtt (net/ipv4/tcp_bbr.c:942) over a ~10s window — seeded once from the core stack’s tcp_min_rtt(tp) at init (net/ipv4/tcp_bbr.c:1054), then run as a separate filter. The generic struct minmax rtt_min (include/linux/tcp.h:249) is the core stack’s windowed-minimum estimator, updated in tcp_update_rtt_min and read via tcp_min_rtt(). (The struct minmax inside BBR is bbr->bw, the bandwidth estimate — not min RTT.) When srtt rises above min RTT, that gap is a standing queue building up — the signal Background 5 is about.

The full RTO/timer math is Day 17; today we only need the smoothing and the two ss fields.

Background 5: pacing and bufferbloat (the BBR prerequisites)

BBR “paces the sender at the estimated bandwidth” and “copes with bufferbloat.” Two terms, neither yet defined.

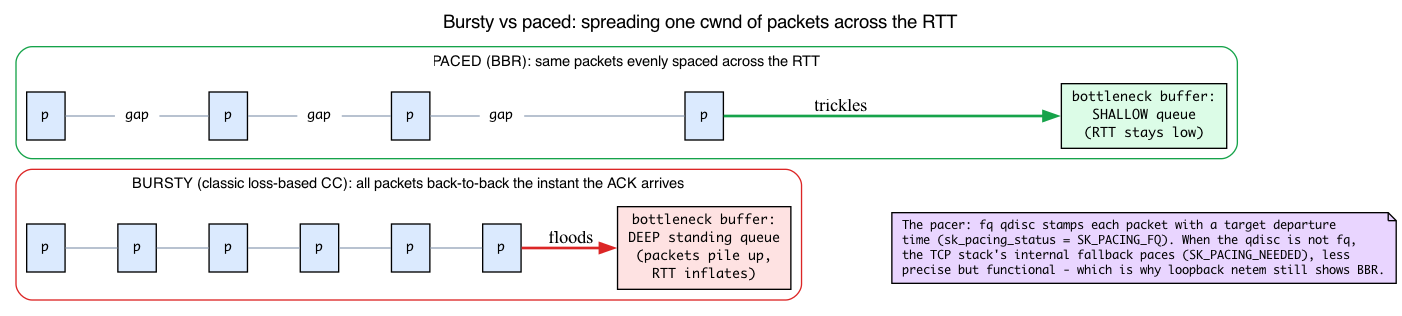

Pacing: spread the window out in time

When an ACK opens room in the window, a classic loss-based CC fires the newly-allowed packets back-to-back, instantly — a burst — and relies on the network to absorb it. Pacing instead spreads a window’s worth of packets evenly across the RTT. BBR computes a target send rate (bytes/sec) from its bandwidth estimate, and the kernel spaces packets in time to match. This matters for BBR specifically: if BBR sent bursts, those bursts would themselves inflate the measured RTT and corrupt the very bandwidth estimate BBR depends on.

Where pacing happens. Recall the qdisc from Day 3 — the per-TX-queue software scheduler. The fq qdisc is the one that can stamp each packet with a target departure time and release it then. That’s why BBR “needs fq (or hardware pacing).” Since Linux 4.13 there’s also an internal fallback in the TCP stack, driven by sk->sk_pacing_status (include/net/sock.h:506), whose values are (include/net/sock.h:612):

enum sk_pacing {
    SK_PACING_NONE   = 0,
    SK_PACING_NEEDED = 1,
    SK_PACING_FQ     = 2,
};

When the egress qdisc is fq, the status is SK_PACING_FQ and fq does the pacing. When it isn’t, the TCP stack paces internally (less precise, but functional) — which is exactly why today’s loopback netem experiment still demonstrates BBR even though lo’s qdisc isn’t fq.

Bufferbloat: buffers so big they hide the loss

A loss-based CC only backs off when a packet is dropped, and a packet is only dropped when a buffer overflows. So on a path with an oversized router/switch buffer, CUBIC keeps pushing — filling that buffer with tens of milliseconds of standing queue — and doesn’t stop until the buffer finally overflows. The buffer is “bloated”; latency is terrible even though throughput looks fine. Loss-based CCs don’t just tolerate bufferbloat, they actively cause it.

BBR’s model sidesteps this. By tracking min_rtt_us (propagation delay) and max bandwidth separately, it watches for the tell: RTT rising while bandwidth stays flat means the queue is building. BBR backs off then — before the drop — instead of waiting for the overflow. That’s the substance behind “copes with bufferbloat better than CUBIC.” bbr_max_bw() (net/ipv4/tcp_bbr.c:216) and min_rtt_us are the two halves of that model; bbr_main (net/ipv4/tcp_bbr.c:1028, wired as .cong_control at :1149) drives it per ACK.

(BDP — the bandwidth-delay product — and the qdisc concept itself were covered on Day 3; we’re not re-deriving them.)

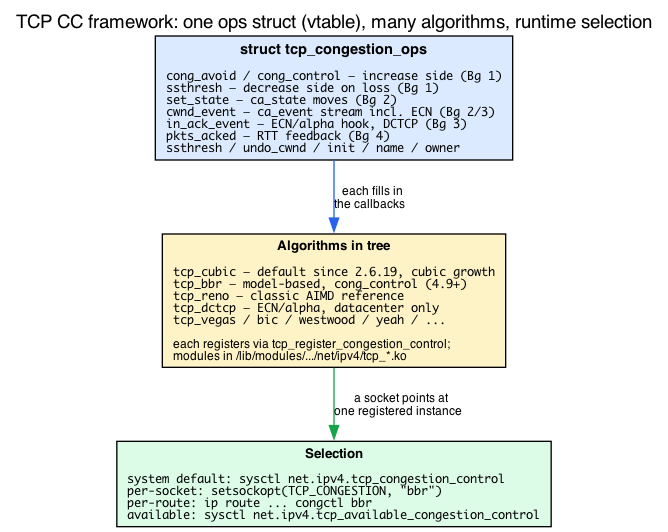

The framework: struct tcp_congestion_ops

Now the vtable is legible. This is the same “ops struct = vtable” pattern you already know — just like struct Qdisc_ops on Day 3 (the per-TX-queue qdisc interface) or the *_ops structs underlying sockets on Day 13: each algorithm provides an instance, registers it, and the core stack dispatches polymorphically through the function pointers. Swapping algorithms is swapping which struct a socket points at. We won’t re-teach the pattern.

What is new to CC is one rule the v7.1 struct comment states explicitly: an algorithm provides either cong_avoid XOR cong_control, never both. Defined in include/net/tcp.h:1316:

struct tcp_congestion_ops {
    /* A congestion control (CC) must provide one of either:
     *
     * (a) a cong_avoid function, if the CC wants the core TCP stack's
     *     default "classic" (Reno/CUBIC-style) loss response, ECN, pacing
     *     rate computations, etc.  ->  runs the Background-1 increase side.
     *
     * (b) a cong_control function, for custom behavior with complete
     *     control of all congestion-control behaviors.  BBR uses this.
     */
    void (*cong_avoid)(struct sock *sk, u32 ack, u32 acked);
    void (*cong_control)(struct sock *sk, u32 ack, int flag,
                         const struct rate_sample *rs);

    /* return slow start threshold (required) — the Background-1 decrease side. */
    u32 (*ssthresh)(struct sock *sk);

    /* call before changing ca_state (Background 2). */
    void (*set_state)(struct sock *sk, u8 new_state);

    /* call when a cwnd event occurs (Background 2's ca_event stream). */
    void (*cwnd_event)(struct sock *sk, enum tcp_ca_event ev);

    /* call on every ACK — DCTCP consumes ECN marks here (Background 3). */
    void (*in_ack_event)(struct sock *sk, u32 flags);

    /* per-ACK RTT/ECN feedback via struct ack_sample (Background 4). */
    void (*pkts_acked)(struct sock *sk, const struct ack_sample *sample);

    /* new value of cwnd after loss (required). */
    u32  (*undo_cwnd)(struct sock *sk);

    char name[TCP_CA_NAME_MAX];
    struct module *owner;
    struct list_head list;       /* registry */
    /* ... */
};

So the callback-to-phase mapping you built up is exactly the API surface: cong_avoid = increase side, ssthresh = decrease side, set_state/cwnd_event = the ca_state/ca_event machine, in_ack_event = the ECN hook, pkts_acked = the RTT feedback. A classic CC fills in cong_avoid + ssthresh; a model-based CC like BBR fills in cong_control instead and ignores the loss-response defaults.

Each algorithm registers an instance via tcp_register_congestion_control (net/ipv4/tcp_cong.c:93). The kernel maintains a global list; selection by name walks it via tcp_ca_find (net/ipv4/tcp_cong.c:26).

In-tree algorithms

Reno — the original

net/ipv4/tcp_cong.c:531 — the reference and default fallback. Pure AIMD, exactly as Background 1 built it: slow start doubles cwnd per RTT, congestion avoidance adds +1 per RTT, loss halves it. The classical TCP behavior; everything else is a variant.

CUBIC

net/ipv4/tcp_cubic.c:475 — the Linux default for ~20 years (default since kernel 2.6.19 in 2006, and still the default in 7.1). Keeps AIMD’s loss response but replaces Background 1’s linear climb with a cubic function: it grows aggressively right after a loss, plateaus near the previous maximum (which it remembers across the ca_state transition), then slowly probes upward. Designed for high-BDP networks (long fat pipes) where Reno’s linear growth was too slow.

• What: loss-based AIMD with a cubic growth curve.
• Why: Reno underutilizes long-RTT links; CUBIC fills them faster.
• When: general-purpose default. Still excellent for typical internet workloads.
• Gotcha: still loss-based — can be unfair against neighbors using BBR (which doesn’t need loss to back off).

The math lives in bictcp_update (net/ipv4/tcp_cubic.c:211), called from cubictcp_cong_avoid (net/ipv4/tcp_cubic.c:321).

BBR — Bottleneck Bandwidth and Round-trip propagation time

net/ipv4/tcp_bbr.c:1144 — Google’s algorithm (RFC draft, ~2016, in-tree since 4.9). Doesn’t use loss as a signal at all; instead it estimates the bottleneck bandwidth and minimum RTT (Background 4) and paces the sender at that bandwidth (Background 5). It fills in cong_control (bbr_main), not cong_avoid.

• What: model-based — track recent max bandwidth and min RTT, send at the estimated BDP, paced.
• Why: copes with bufferbloat (Background 5) better than CUBIC; achieves higher throughput on lossy paths.
• When: WAN, satellite, mobile, anywhere with high BDP and lossy paths. Used heavily by Google’s CDN/services.
• Gotcha: can be unfair to neighbor CUBIC flows — BBR’s bandwidth estimate doesn’t react to loss the way CUBIC does, so it can take more than its fair share. Mitigated in BBR v2/v3 (in some kernels).
• Pacing requirement: BBR needs fq qdisc (or hardware pacing) to pace packets at the estimated rate (Background 5). Without fq, the internal sk_pacing_status fallback applies, but precision drops.

DCTCP — Data Center TCP

net/ipv4/tcp_dctcp.c:255. Uses ECN-CE marks (Background 3) instead of loss as the congestion signal — switches mark before they drop, and DCTCP reads the marks directly via in_ack_event (dctcp_update_alpha). Reduces queueing latency dramatically (sub-millisecond instead of tens of ms).

• What: ECN-driven; reacts proportionally to the fraction of marked packets (its alpha).
• Why: datacenter switches mark before they drop; DCTCP reads the marks directly.
• When: datacenter only — requires ECN-marking switches and a homogeneous CC choice across all hosts.
• Gotcha: must not be used on the public Internet. Its proportional response shares unfairly against the full-cut response of Reno/CUBIC (Background 3).

Others

Vegas, Westwood, YeAH, Veno, BIC, HighSpeed (HSTCP), Hybla, LP, NV, etc. Each has a niche. Most have one or two papers and a few hundred lines of code. Read net/ipv4/tcp_*.c if you’re curious.

Selecting an algorithm

# What's available
sysctl net.ipv4.tcp_available_congestion_control
# Typically: cubic reno (order, and whether bbr already appears,
# depend on what's loaded — after 'modprobe tcp_bbr' bbr joins the list)

# Default for new sockets (system-wide)
sysctl net.ipv4.tcp_congestion_control

# Set system-wide:
sudo sysctl -w net.ipv4.tcp_congestion_control=bbr

# Per-connection (in code):
const char cc[] = "bbr";
setsockopt(fd, IPPROTO_TCP, TCP_CONGESTION, cc, sizeof(cc));

# Per-route:
sudo ip route change 10.0.0.0/24 via 192.168.1.1 congctl bbr

# Per-cgroup (via BPF sockops — see eBPF book Day 19)

Some algorithms are kernel modules (tcp_bbr.ko, tcp_dctcp.ko); load with modprobe tcp_bbr. CUBIC is usually compiled-in.

How it ties together at runtime

For each TCP connection:

1. At socket creation: tcp_init_sock (net/ipv4/tcp.c:421) calls tcp_assign_congestion_control (:463) which picks the algorithm (per-route, per-default, per-app sockopt).
2. init callback runs once. Allocates per-sock private state in icsk_ca_priv — exactly 104 bytes of scratch space inside the inet_connection_sock (include/net/inet_connection_sock.h:141).
3. Per ACK: tcp_ack (tcp_input.c) calls cong_avoid(sk, ack, acked) for classic CCs (CUBIC/Reno — the Background-1 increase side). Algorithms that define cong_control instead (BBR) get cong_control(sk, ack, flag, rs) with a full rate_sample. Either way the algorithm updates tp->snd_cwnd based on its model.
4. On loss/RTO: the kernel calls set_state(sk, CA_Loss) (Background 2) and ssthresh(sk) (the Background-1 decrease side). The algorithm computes the new threshold and cwnd drops toward it.
5. On RTT sample: the kernel calls pkts_acked(sk, sample) with the latest struct ack_sample (Background 4). Pure feedback for the algorithm.

A typical CC algorithm is ~300 lines of C, 90% of which is cong_avoid and the loss/recovery handling.

Today’s experiment

# Load BBR (if not already)
sudo modprobe tcp_bbr

# iperf3 isn't installed by default on minimal images
sudo apt-get install -y iperf3

# Start an iperf3 server
iperf3 -s -p 5201 &

# Run with CUBIC
iperf3 -c 127.0.0.1 -p 5201 -C cubic -t 30 -J | jq '.end.streams[0].sender'

# Now BBR
iperf3 -c 127.0.0.1 -p 5201 -C bbr -t 30 -J | jq '.end.streams[0].sender'

On localhost the difference is small (no real bottleneck). For a more interesting test, add latency and loss with tc netem:

sudo tc qdisc add dev lo root netem delay 50ms loss 1%
iperf3 -c 127.0.0.1 -p 5201 -C cubic -t 30
iperf3 -c 127.0.0.1 -p 5201 -C bbr -t 30
sudo tc qdisc del dev lo root

# Stop the background iperf3 server when done
pkill iperf3   # or, in the same interactive shell: kill %1

CUBIC’s loss-based response will give up bandwidth at every loss (Background 1’s multiplicative cut); BBR’s bandwidth-model approach should hold up better on the lossy path.

Note: even though lo’s root qdisc is now netem and not fq, BBR still paces here. Since Linux 4.13 the TCP stack carries an internal pacing fallback (driven by sk->sk_pacing_status, Background 5) that kicks in when the egress qdisc isn’t fq. It’s less precise than fq’s timestamp-based pacing, but functional — which is why this localhost test still demonstrates BBR’s behavior. On a real NIC you’d front BBR with fq (or hardware pacing) for accurate per-packet pacing.

Watch cwnd evolution

sudo bpftrace -e '
kprobe:tcp_write_xmit {
  $tp = (struct tcp_sock *)arg0;
  @cwnd = lhist($tp->snd_cwnd, 0, 1000, 50);
}
interval:s:10 { exit(); }'

tcp_write_xmit (net/ipv4/tcp_output.c:2963) only fires while data is actually being sent, so on an idle box this histogram comes back empty. Give it traffic: in one terminal start a 30s transfer (the server is still running from the experiment above) with iperf3 -c 127.0.0.1 -p 5201 -C cubic -t 30, then in a second terminal run the bpftrace above — the 10s window captures snd_cwnd across the live transfer. Repeat with -C bbr to compare the two distributions. (You’re watching the Background-1 sawtooth directly: under loss, CUBIC’s histogram should spread lower than BBR’s.)

Per-socket TCP info

ss -tin
# Look for: the CC algo as a bare token (cubic / bbr), cwnd:N,
#           rtt:<srtt>/<rttvar>, retrans:X/Y (only appears after retransmissions)

To see a bbr socket with a live cwnd, run ss -tin while one of the transfers above is in flight (use -t 30 and pin the algorithm with -C bbr). On an idle box ss -tin shows only your SSH session (using whatever the system default CC is — cubic or bbr) and listeners stuck at cwnd:10 (there’s TCP_INIT_CWND from Background 1). Real output for an established socket looks like:

ESTAB 0 0  10.0.0.4:22  ...:62372
	 bbr wscale:6,10 rto:219 rtt:18.897/2.546 ato:40 mss:1448 cwnd:37 ...
	 bbr:(bw:7349256bps,mrtt:10.98,pacing_gain:2.88672,cwnd_gain:2.88672) ...

Note the CC algorithm prints as a bare token (bbr / cubic), the smoothed RTT as rtt:<srtt>/<rttvar> (Background 4 — srtt already un-shifted from the kernel’s <<3 form), and retransmits as retrans:X/Y (present only once a retransmission has occurred). The bbr:(bw:...,mrtt:...) line is BBR’s model state: bw is bbr_max_bw, mrtt is min_rtt_us in milliseconds (Background 5).

ss -tin reads tcp_get_info (net/ipv4/tcp.c, search the function) which fills struct tcp_info from the live tcp_sock state.

There are no Dumb Questions

Q: Slow start is “exponential” but congestion avoidance is “linear.” Which is the connection in right now?

A: Whichever side of snd_ssthresh cwnd is on. tcp_in_slow_start(tp) is literally cwnd < ssthresh: below the threshold the connection doubles cwnd per RTT (slow start); at or above it, it adds +1 per RTT (congestion avoidance). A loss resets ssthresh to cwnd/2, so the next climb starts in slow start but switches to linear much sooner.

Q: Is CA_Loss the same as the connection leaving ESTABLISHED?

A: No — completely orthogonal. The connection stays ESTABLISHED (Day 15’s state machine). ca_state is a second state machine tracking the loss/recovery cycle: Open → Disorder → Recovery (fast retransmit) or Open → Loss (RTO). The kernel signals moves via set_state(); ssthresh() gets called on the way into Recovery/Loss.

Q: How can the network tell me to slow down without dropping a packet?

A: ECN. A congested switch rewrites the IP ECT bits to CE instead of dropping; the receiver echoes that back as the TCP ECE flag; the sender cuts cwnd and replies CWR. DCTCP reacts proportionally to how many packets were marked — which is why it achieves sub-millisecond datacenter latency, and why it can’t be mixed with Reno/CUBIC on the open Internet.

What to read in the kernel

• include/net/tcp.h — struct tcp_congestion_ops (line 1316). The vtable. Read the (a) cong_avoid XOR (b) cong_control comment — it’s the one CC-specific rule. Also enum tcp_ca_event (line 1242) and struct ack_sample (line 1283).

• include/uapi/linux/tcp.h — enum tcp_ca_state (line 194). The five loss/recovery states.

• net/ipv4/tcp_cong.c — registration framework + the AIMD primitives. Key functions:

  • tcp_register_congestion_control (line 93): adds an algorithm to the global list.
  • tcp_ca_find (line 26): name → algorithm lookup.
  • tcp_set_congestion_control (line 412): switch a socket’s CC.
  • tcp_init_congestion_control (line 236): per-sock init.
  • tcp_slow_start (line 456): the exponential phase.
  • tcp_cong_avoid_ai (line 470): the additive-increase (linear) helper.
  • tcp_reno_cong_avoid (line 496) / tcp_reno_ssthresh (line 515): the AIMD reference.
  • tcp_reno instance (line 531): every other algorithm is “Reno plus extra cleverness.”

• net/ipv4/tcp_input.c — search tcp_ack. The function that calls cong_avoid per incoming ACK. Trace it once to see how the kernel decides “useful ACK” vs “duplicate ACK” before invoking the algorithm.

• net/ipv4/tcp_cubic.c:475 — cubictcp instance. Read cubictcp_cong_avoid (line 321); the math is mostly in bictcp_update (line 211).

• net/ipv4/tcp_bbr.c:1144 — tcp_bbr_cong_ops, with .cong_control = bbr_main (entry per ACK at line 1028). Long file (~1200 lines) but the structure is clear; read the top-of-file comment and note min_rtt_us (line 91) and bbr_max_bw (line 216).

• net/ipv4/tcp_dctcp.c:255 — DCTCP. Short and instructive. Notice how dctcp_update_alpha (line 127) is wired as .in_ack_event (line 257) to consume ECN marks.

• include/net/inet_ecn.h — INET_ECN_CE and INET_ECN_is_ce() (lines 14–24). The IP-layer ECN marking.

• Documentation/networking/ip-sysctl.rst — the tcp_congestion_control sysctl and related knobs. See also Documentation/networking/dctcp.rst for DCTCP specifics.

Bullet Points

• TCP CC computes snd_cwnd — how much the sender thinks the network can absorb (vs rcv_wnd, what the receiver can buffer).
• cwnd is in packets. A connection starts at TCP_INIT_CWND = 10, doubles per RTT in slow start (exponential, until cwnd >= snd_ssthresh), then grows +1 per RTT in congestion avoidance (linear, via tcp_cong_avoid_ai).
• AIMD = Additive Increase / Multiplicative Decrease. +1/RTT up, halve on loss (ssthresh = cwnd/2). That’s the sawtooth. CUBIC replaces the linear climb with a cubic curve; BBR replaces the loss loop with a bandwidth model.
• ca_state (Open/Disorder/CWR/Recovery/Loss) is a separate state machine from the Day-15 connection states — it tracks loss/recovery. set_state signals moves; cwnd_event delivers the finer ca_event stream (including the ECN events).
• ECN signals congestion without a drop: a switch rewrites IP ECT → CE, the receiver echoes TCP ECE, the sender replies CWR. DCTCP reacts proportionally via in_ack_event.
• srtt/rttvar: the kernel smooths raw RTT samples (ack_sample.rtt_us) into srtt_us (stored <<3) and rttvar_us; ss prints rtt:<srtt>/<rttvar>. Rising srtt above min RTT = queue building.
• Pacing spreads a window across the RTT (needs fq qdisc or the sk_pacing_status fallback); bufferbloat is oversized buffers adding standing delay without dropping. BBR backs off on rising RTT before the drop; CUBIC waits for the overflow.
• Pluggable framework: each algorithm is a struct tcp_congestion_ops (a vtable, like Day 3’s Qdisc_ops) registered via tcp_register_congestion_control. An algorithm provides cong_avoid XOR cong_control.
• CUBIC — loss-based, cubic growth, longtime default. BBR — model-based, needs fq for pacing. DCTCP — ECN-based, datacenter only. Reno — the ~30-line reference; everyone else “is Reno but…”.
• Switch via sysctl, sockopt (TCP_CONGESTION), or per-route. BPF (sock_ops) can override per-cgroup. Per-connection state lives in icsk_ca_priv (104 bytes inside inet_connection_sock).

Check question

Why doesn’t the kernel just always use BBR (since it’s newer and often performs better)?

Tomorrow

Day 17: TCP retransmission and recovery — RTO, fast retransmit, RACK, the recovery state. This is where the ca_state machine from Background 2 gets its full treatment.
